EPTFE Gasket Sheet
EPTFE Gasket Sheet is a form of PTFE which is expanded and stretched in many different directions during the manufacturing process. This multi-directional, higher strength material demonstrates a reduced tendency to creep under load at elevated temperatures when ompared with other PTFE gasket materials. EPTFE gasket sheet shows good mechanical recovery over long term compression and temperature fluctuation resulting in very low leakage rates and, due to the very soft texture of the material, conforms perfectly to pitted, uneven flange faces. Model:KXT B302
Send Inquiry
Product Description
EPTFE Gasket Sheet – Multi‑Directional Expanded PTFE for Superior Sealing on Imperfect Flanges
Kaxite Sealing is a leading China-based manufacturer and supplier of EPTFE gasket sheets (Model KXT B302) – a high‑performance expanded PTFE material engineered through a unique multi‑directional stretching process. This results in a soft, conformable, yet dimensionally stable gasket sheet that delivers exceptional sealing performance even on pitted, uneven, or damaged flange faces. With superior resistance to creep and cold flow, excellent chemical resistance across the full pH range (0–14), and FDA‑compliance for food and pharmaceutical contact, EPTFE gasket sheets are the trusted choice for petrochemical, pharmaceutical, food processing, and general industrial applications where reliability and safety are critical.
As a trusted factory direct supplier in China, Kaxite offers custom thicknesses and sheet sizes, FDA‑approved grades, and competitive wholesale pricing. Request your price list and free sample →
EPTFE gasket sheet – multi‑directional expanded structure for superior conformability
Why EPTFE Gasket Sheet?
Conforms to Imperfect Flanges
Seals pitted, scratched, and uneven flange faces with ease.
Creep & Cold Flow Resistance
Multi‑directional strength reduces relaxation under load.
Chemical Resistance (pH 0–14)
Resists almost all aggressive chemicals.
FDA Compliant
Suitable for food, beverage, and pharmaceutical applications.

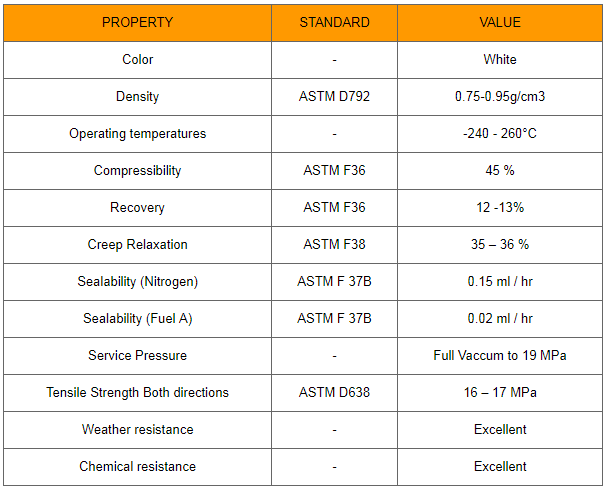

Technical Specifications – EPTFE Gasket Sheet (KXT B302)
* Custom thicknesses and sheet sizes available. Contact our technical team for bespoke requirements.
Complete technical data – physical and mechanical properties
Advantages of EPTFE Gasket Sheet
- ✅ Superior conformability – seals pitted, scratched, and uneven flange faces with minimal bolt load
- ✅ Excellent creep resistance – multi‑directional expanded structure maintains sealing force over time
- ✅ Very low leakage rates – ideal for critical sealing applications
- ✅ Chemical resistance across full pH range – suitable for aggressive chemicals and solvents
- ✅ FDA‑compliant – approved for food, beverage, and pharmaceutical contact
Typical Applications – Industries & Media
Frequently Asked Questions – EPTFE Gasket Sheet
What is the difference between EPTFE and standard PTFE gasket sheet?
EPTFE (expanded PTFE) is produced through a multi‑directional expansion process that creates a micro‑porous, fibrous structure. This gives it superior conformability, higher compressibility, and better creep resistance compared to standard PTFE, making it ideal for sealing imperfect flanges and low‑bolt‑load applications.
Is EPTFE gasket sheet suitable for food and pharmaceutical applications?
Yes, our EPTFE gasket sheet complies with FDA 21 CFR 177.1550 and USP Class VI, making it safe for food, beverage, and pharmaceutical contact applications.
What thicknesses and sizes are available?
Standard thicknesses range from 0.5 mm to 6.0 mm, with sheet sizes up to 1500×1500 mm. Custom thicknesses and dimensions are available upon request.
Can EPTFE gasket sheet seal damaged or pitted flanges?
Absolutely. The soft, highly conformable nature of EPTFE allows it to flow into surface imperfections, providing a reliable seal even on pitted, scratched, or uneven flange faces.
What is the maximum temperature for EPTFE gasket sheet?
EPTFE gasket sheet can operate continuously from -200°C to +260°C, making it suitable for both cryogenic and high‑temperature services.
Why Source from Kaxite Sealing – Your Trusted EPTFE Gasket Sheet Manufacturer in China
- ✔ 20+ years of PTFE processing expertise
- ✔ ISO 9001 certified production facility
- ✔ Exported to 40+ countries worldwide
- ✔ In‑house expansion and converting capabilities
- ✔ Custom thicknesses & sizes – any dimension
- ✔ FDA‑compliant grades available
- ✔ Flexible logistics – sea, air, express from Ningbo/Shanghai
- ✔ 24/7 technical support – prompt response to inquiries
Packaging & Worldwide Delivery
* Custom packaging and labelling available. View packaging & shipping details →
Ready to Order? Contact Kaxite – China's Reliable EPTFE Gasket Sheet Manufacturer
As a premier China supplier of EPTFE gasket sheets, Kaxite provides high‑quality products at factory‑direct prices. Whether you need a sample, a price list, or a bulk order, our experienced team is ready to support you with technical advice and prompt service.
📞 Call us: 0086-574-87527771 | ✉️ Email: cindy@seal-china.com | 🌐 Visit: www.expandedptfesheets.com
