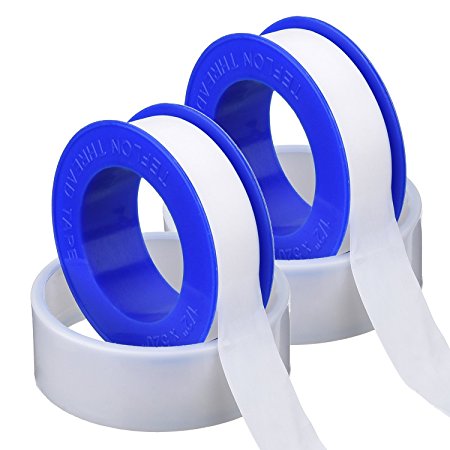

PTFE Thread Seal Tape
PTFE Thread Seal Tape is widely used in the fields such as building,machinery,chemical industry,space navigation etc.Send Inquiry
Product Description
PTFE Thread Seal Tape – Reliable, Non‑Curing Sealing for Threaded Connections
Kaxite Sealing is a leading China-based manufacturer and supplier of PTFE thread seal tape – a high‑performance, non‑curing sealing tape designed for threaded pipe joints, fittings, and connectors. Made from 100% virgin PTFE through precision extrusion and stretching, our tape offers exceptional chemical resistance, wide temperature tolerance (-200°C to +260°C), and low friction. It effectively seals water, air, gas, and aggressive chemicals, making it the trusted choice for plumbing, HVAC, industrial piping, automotive, and aerospace applications. With unlimited shelf life and no curing time, Kaxite PTFE thread seal tape delivers quick, clean, and reliable leak‑tight seals.
As a trusted factory direct supplier in China, Kaxite offers custom widths, thicknesses, and lengths, high‑density and gas‑rated grades, and competitive wholesale pricing. Request your price list and free sample →
Why PTFE Thread Seal Tape?
Easy to Apply
Quick and clean application on threaded metal, PVC, and plastic pipes.
Chemical Resistant
Resists most acids, alkalis, solvents, fuels, and gases including oxygen.
Wide Temperature Range
Reliable from -200°C to +260°C, suitable for cryogenic and high‑heat services.
Leak‑Tight & Non‑Curing
Provides instant sealing without hardening or cracking over time.

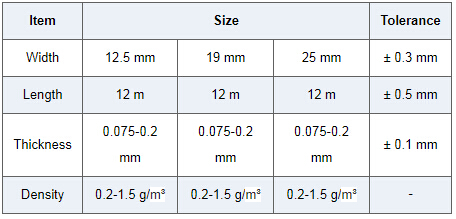

Technical Specifications – PTFE Thread Seal Tape
* Custom specifications available for OEM orders. Contact our technical team.
Complete specifications for PTFE thread seal tape – density, thickness, and dimensions
Advantages of Kaxite PTFE Thread Seal Tape
- ✅ Effective across a broad range of temperatures & pressures
- ✅ Compatible with a wide range of gases and liquids
- ✅ Works with all piping materials – metal, PVC, plastic
- ✅ Prevents electrolytic corrosion of threaded joints
- ✅ Acts as a thread lubricant and anti‑seize
- ✅ Will not harden or crack on the joints
- ✅ Unlimited shelf life – always ready to use
- ✅ Non‑flammable and safe to handle
- ✅ No curing time – immediate sealing
- ✅ Clean application – no mess, no paste residue
Typical Applications – Media & Industries
Suitable for plumbing, HVAC, industrial piping, automotive engines, hydraulic systems, and aerospace.
How to Apply PTFE Thread Seal Tape
Remove debris and old sealant.
Place tape at the second thread from end.
Wrap in the direction of the threads (right‑hand).
Overlap by 50% with moderate tension.
Break off cleanly and smooth down.
* For gas lines and high‑pressure applications, use high‑density tape and wrap 4–6 layers.
Frequently Asked Questions – PTFE Thread Seal Tape
What is PTFE thread seal tape used for?
PTFE thread seal tape is used to create a leak‑tight seal on threaded pipe joints and fittings. It lubricates the threads, prevents seizing, and fills the gaps between male and female threads to prevent leakage of liquids and gases.
What is the temperature range of PTFE thread seal tape?
PTFE thread seal tape has a wide operating temperature range of -200°C to +260°C, making it suitable for both cryogenic and high‑temperature applications.
How many wraps of PTFE tape should I use?
For standard threads, 3–4 wraps are sufficient. For high‑pressure gas or chemical lines, use 5–6 wraps of high‑density tape. Always wrap in the direction of the threads.
Can PTFE thread seal tape be used on gas lines?
Yes, but it is recommended to use yellow or pink gas‑rated PTFE tape which is thicker and specifically designed for gas and LPG lines. We offer gas‑rated tape that meets industry standards.
What is the difference between standard and high‑density PTFE tape?
High‑density PTFE tape has a higher density (1.20 – 1.40 g/cm³) compared to standard tape (0.75 – 0.95 g/cm³). It provides better thread fill, higher pressure resistance, and is ideal for gas, hydraulic, and critical industrial applications.
Why Source from Kaxite Sealing – Your Trusted PTFE Thread Seal Tape Supplier in China
- ✔ 20+ years of PTFE manufacturing expertise
- ✔ ISO 9001 certified production facility
- ✔ Exported to 40+ countries worldwide
- ✔ In‑house R&D and compounding capabilities
- ✔ Custom sizes – width, thickness, and length
- ✔ FDA & UL compliant materials available
- ✔ Flexible logistics – sea, air, express from Ningbo/Shanghai
- ✔ 24/7 technical support – prompt response to inquiries
Packaging & Worldwide Delivery
* Custom packaging and labelling available. View packaging & shipping details →
Ready to Order? Contact Kaxite – China's Reliable PTFE Thread Seal Tape Manufacturer
As a premier China supplier of PTFE thread seal tape, Kaxite provides high‑quality products at factory‑direct prices. Whether you need a sample, a price list, or a bulk order, our experienced team is ready to support you with technical advice and prompt service.
