Expanded PTFE Joint Sealant Tape
Expanded PTFE Joint Sealant Tape is an inorganic sealant for static applications made of 100% PTFE.A unique process converts PTFE to a micro-porous fibrous structure, resulting a sealant with an unsurpassed combination of mechanical and chemical properties. It is supplied with a self-adhesive strip for easy fitting. Model:KXT 1810
Send Inquiry
Product Description
Expanded PTFE Joint Sealant Tape – Versatile, Self‑Adhesive Sealing for Any Flange
Kaxite Sealing is a leading China-based manufacturer and supplier of expanded PTFE joint sealant tape (Model KXT 1810) – a 100% pure expanded PTFE gasket material with a self‑adhesive backing for quick and reliable installation. Through a unique manufacturing process, PTFE is converted into a micro‑porous, fibrous structure that delivers an unmatched combination of chemical inertness, high compressibility, and excellent sealing performance. This tape conforms to irregular, damaged, or out‑of‑parallel flange faces, making it the ideal sealing solution for glass‑lined equipment, plastic flanges, heat exchangers, pumps, and compressors – even where traditional gaskets fail.
As a trusted factory direct supplier in China, Kaxite offers custom widths and thicknesses, FDA‑compliant grades, and competitive wholesale pricing. Request your price list and free sample →
Why Expanded PTFE Sealant Tape?
Conforms to Irregular Faces
Seals damaged, pitted, or out‑of‑parallel flanges with ease.
Chemically Inert
Unaffected by all common chemicals (pH 0–14) and solvents.
Quick & Simple Installation
Self‑adhesive strip holds tape in place – no adhesive or paste needed.
FDA Compliant
Suitable for food, beverage, and pharmaceutical applications.
Technical Specifications – KXT 1810
- Material: 100% expanded PTFE (micro‑porous)
- Adhesive: Self‑adhesive strip (one side)
- Temperature Range: -200°C to +260°C
- Pressure Range: Up to 100 bar (depending on flange design)
- Width Range: 5 mm – 100 mm (custom)
- Thickness Range: 1.5 mm – 6 mm (standard)
- Color: White / Off‑white
- Approvals: FDA 21 CFR 177.1550, USP Class VI
* Custom sizes and thicknesses available upon request. Contact our technical team.
Key Advantages Over Traditional Gaskets
- ✅ Seals irregular faces – compensates for flange damage, misalignment, and out‑of‑parallel surfaces
- ✅ Low bolt load requirement – less force needed compared to conventional gasket materials
- ✅ Instant installation – self‑adhesive strip holds tape in place, no glue or paste required
- ✅ Unlimited shelf life – no degradation over time, always ready to use
- ✅ FDA approved – suitable for food, beverage, and pharmaceutical contact
Micro‑porous structure of expanded PTFE

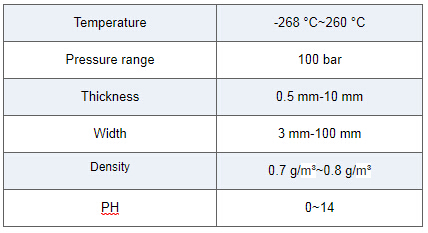

Technical data sheet

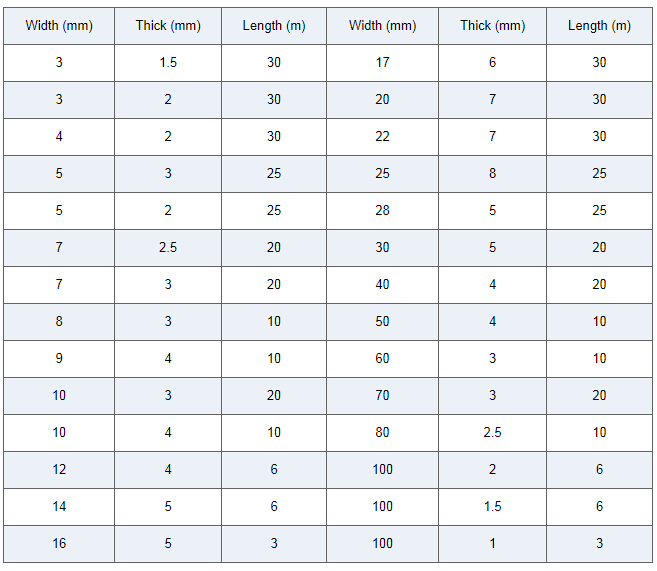

Available sizes (width × thickness)
Typical Applications
How to Install Expanded PTFE Joint Sealant Tape
Remove debris, oil, and old gasket.
Cut tape slightly longer than flange circumference.
Remove liner and press adhesive side onto flange face.
Cross ends over each other at bolt hole.
Assemble and torque bolts evenly.
* For detailed torque recommendations, consult our installation guide.
Frequently Asked Questions – Expanded PTFE Joint Sealant Tape
What is the maximum temperature and pressure for this tape?
The tape is rated for continuous service from -200°C to +260°C and pressures up to 100 bar (depending on flange design and bolting).
Is this tape FDA‑approved?
Yes, it complies with FDA 21 CFR 177.1550 and USP Class VI, making it suitable for food, beverage, and pharmaceutical contact applications.
Can it seal damaged or irregular flange faces?
Absolutely. The expanded PTFE material is highly conformable and fills gaps, scratches, and pitting, providing a reliable seal even on rough, out‑of‑parallel, or damaged flanges.
What sizes are available?
Standard widths range from 5 mm to 100 mm, thicknesses from 1.5 mm to 6 mm. Custom sizes are available upon request.
Is the tape reusable?
While the tape is designed for single‑use applications, it can sometimes be reused if undamaged. However, for critical services, we recommend installing a fresh tape to ensure optimal seal integrity.
Why Source from Kaxite Sealing – Your Trusted Expanded PTFE Manufacturer in China
- ✔ 20+ years of PTFE processing expertise
- ✔ ISO 9001 certified manufacturing
- ✔ Exported to 40+ countries worldwide
- ✔ In‑house expansion and converting capabilities
- ✔ Custom sizes – width, thickness, and length
- ✔ FDA & USP compliant grades available
- ✔ Flexible logistics – sea, air, express from Ningbo/Shanghai
- ✔ 24/7 technical support – prompt response to inquiries

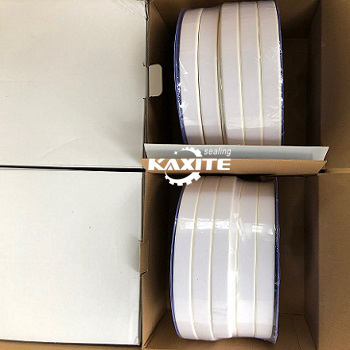

Packaging & Worldwide Delivery
* Custom packaging and labelling available. View packaging & shipping details →
Ready to Order? Contact Kaxite – China's Reliable Expanded PTFE Joint Sealant Tape Manufacturer
As a premier China supplier of expanded PTFE sealing products, Kaxite provides high‑quality joint sealant tape at factory‑direct prices. Whether you need a sample, a price list, or a bulk order, our experienced team is ready to support you with technical advice and prompt service.
